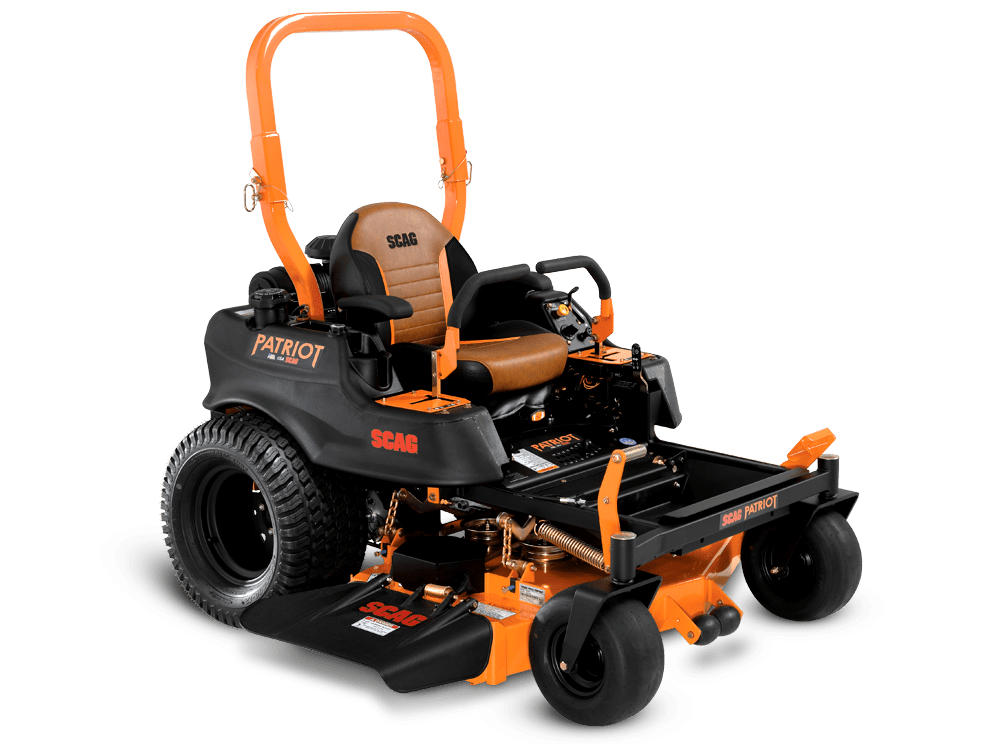

SCAG Patriot™
DEEP, FABRICATED, AND WELDED CUTTER DECKS
52" OR 61" CUTTING WIDTH
The heavy-duty Patriot™ design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
POWERFUL AND EFFICIENT ENGINE OPTIONS
RELIABLE POWER, UP TO 25 HP
Choose from a Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.
FOOT-PEDAL PARKING BRAKE
STAY IN CONTROL
Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.
ISO-MOUNTED FOOTPLATE
CRANK UP THE COMFORT
Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.
SUSPENSION SEAT
RIDE IN COMFORT
The torsion-spring suspension seat adjusts to each operator’s weight, is contoured and features armrests, all to provide superior comfort.
LOW-MAINTENANCE MOWER DESIGN
MORE UPTIME
Fewer grease points increase operator convenience and ease-of-ownership.
HYDRO-GEAR ZT-3100 / ZT-3400 TRANSAXLES
SPEEDS UP TO 10 MPH (SPZ61) / 8.5 MPH (SPZ52)
The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
HIGH-STRENGTH STEEL FRAME
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Tubular-steel main frame delivers unmatched strength and longevity.
OGURA PTO CLUTCH BRAKE
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.
