Skid-Mount Truck Loaders
4-Blade Impeller
FABRICATED AND BALANCED, 20-INCH, 4-BLADE IMPELLER
Within the unit’s 6″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 3,075 CFM), debris-reducing design.
Smart Construction and Convenient Serviceability
EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE
1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
Locking Boom Arm and Intake Nozzle
SAFE AND CONVENIENT TRANSPORT
Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. Quick-detach hose also allows for quick and easy transport, storage and cleaning.
Ambidextrous Nozzle Handle
EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS
Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

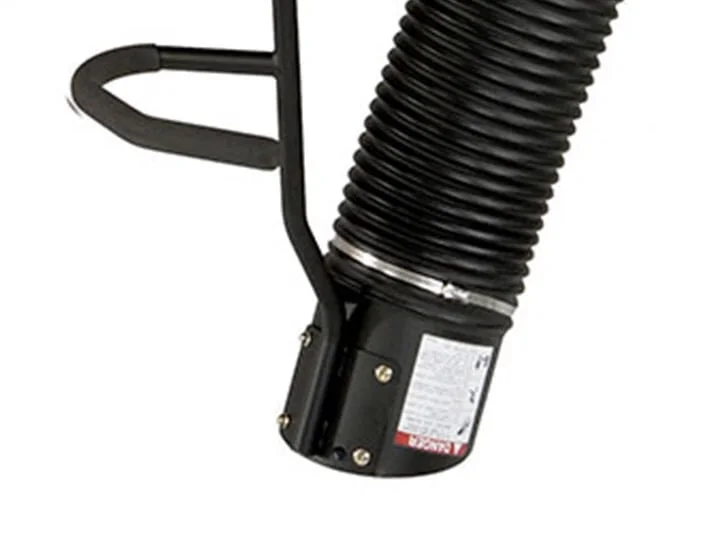

10" Steel Intake Nozzle
TAKE IT ALL IN
Large, replaceable intake nozzle is beveled to make debris pickup easy.
Skid-Mount
STANDARD 4" SKID RISERS
Four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be completely removed.
Hitch-Mount (Optional)
OPTIONAL SWING-AWAY HITCH-MOUNT ACCESSORY
Swing-away design allows the loader to move for dumping/removing debris from the truck. There are three (3) locking positions for exceptional versatility. Fits TLS20-18BV model only.
Powerful Engine
18 HP VANGUARD V-TWIN
Powered by an 18 hp Vanguard® gasoline, V-twin engine with electric start.
